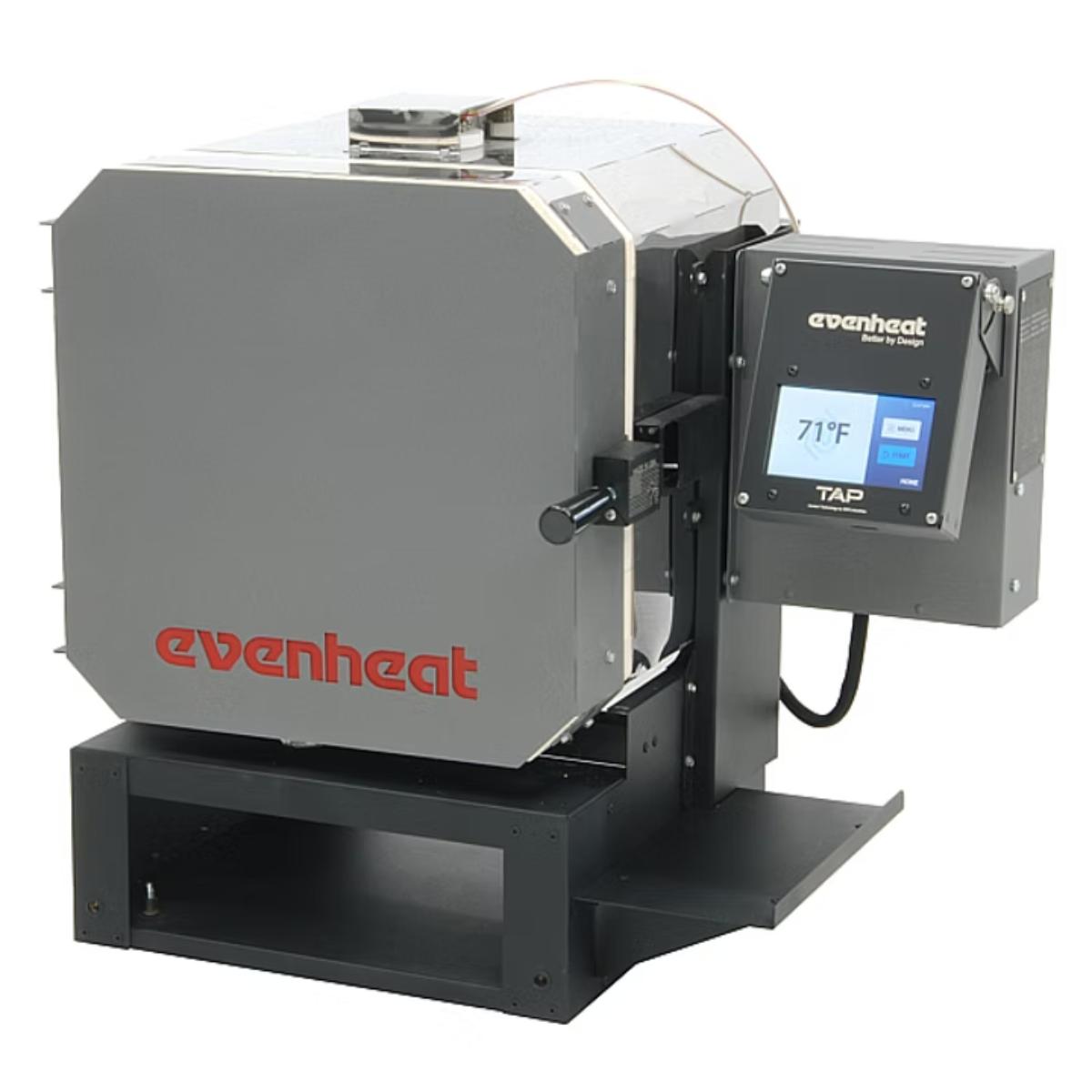

Cube 7 Small High-Temp Knife Oven for Precision Blade Heat Treating
The Evenheat Cube 7 offers a smart, space-saving design without sacrificing performance. Its 7″ × 7″ × 7″ firing chamber reaches up to 2350 °F (1287 °C), making it ideal for small-scale firing, heat treating, and glasswork. Built for reliability, it comes standard in 120V single-phase, with 240V available upon request.
Engineered for consistent results, the Cube 7 runs flawlessly on both 50 Hz and 60 Hz line frequencies, ensuring global compatibility. Designed for 120V single-phase power and Evenheat’s proven craftsmanship, this kiln is an excellent choice for studios, workshops, and classrooms where space is limited but performance is essential.
Built to last, it features a swing-out door, cool-touch handle, door shield to protect the firebrick, and an easy-access relay port—all designed to keep you safe, minimise maintenance, and let you focus on your craft rather than the hardware.
Key Features of the Evenheat 7x7x7 Knife Kiln
-
Ideal for Heat Treating Small Parts – Machinists, prototype builders, and blade makers get precision heat in tight spaces.
-
7″ × 7″ × 7″ Chamber – Compact cube shape holds billets, parts, or small blades comfortably.
-

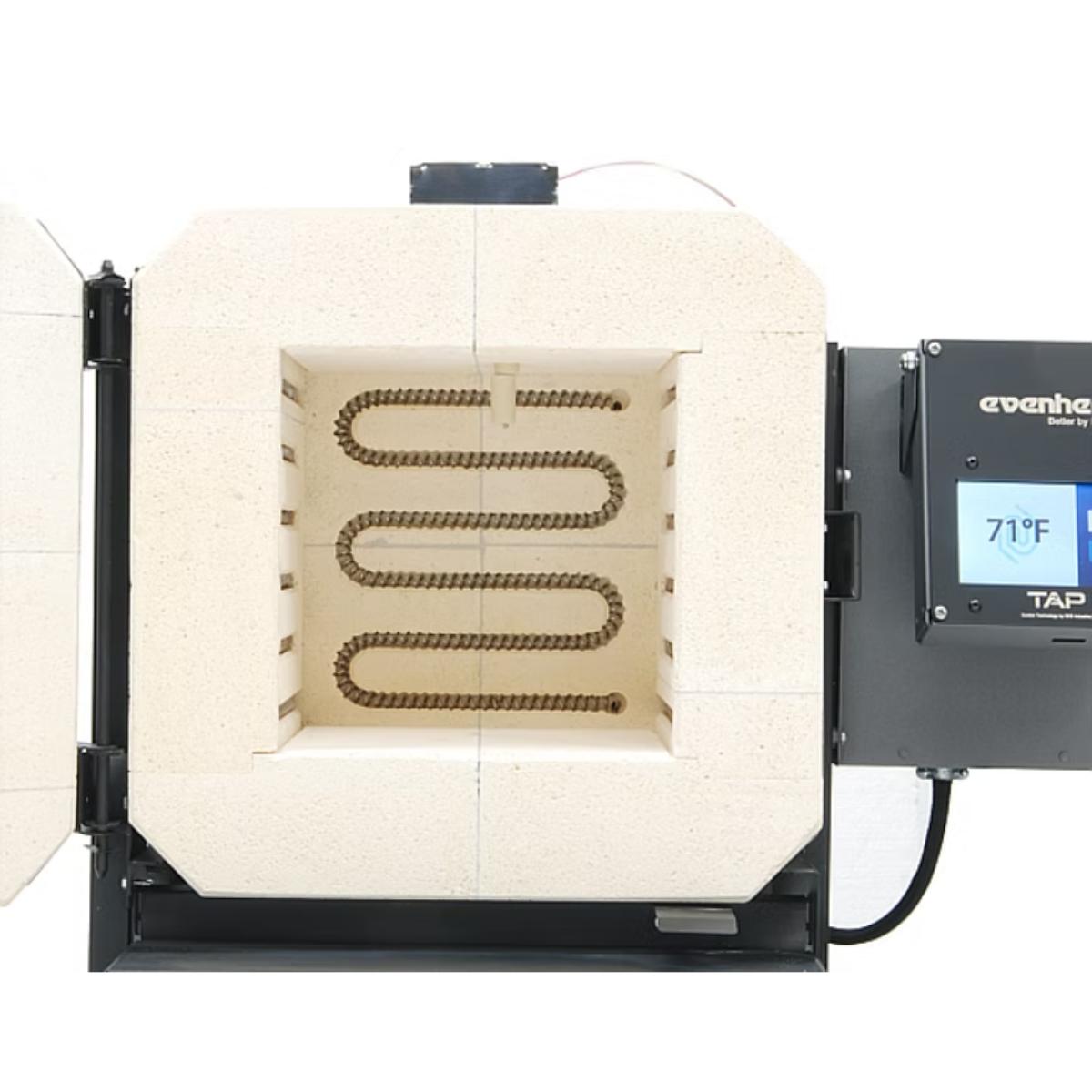

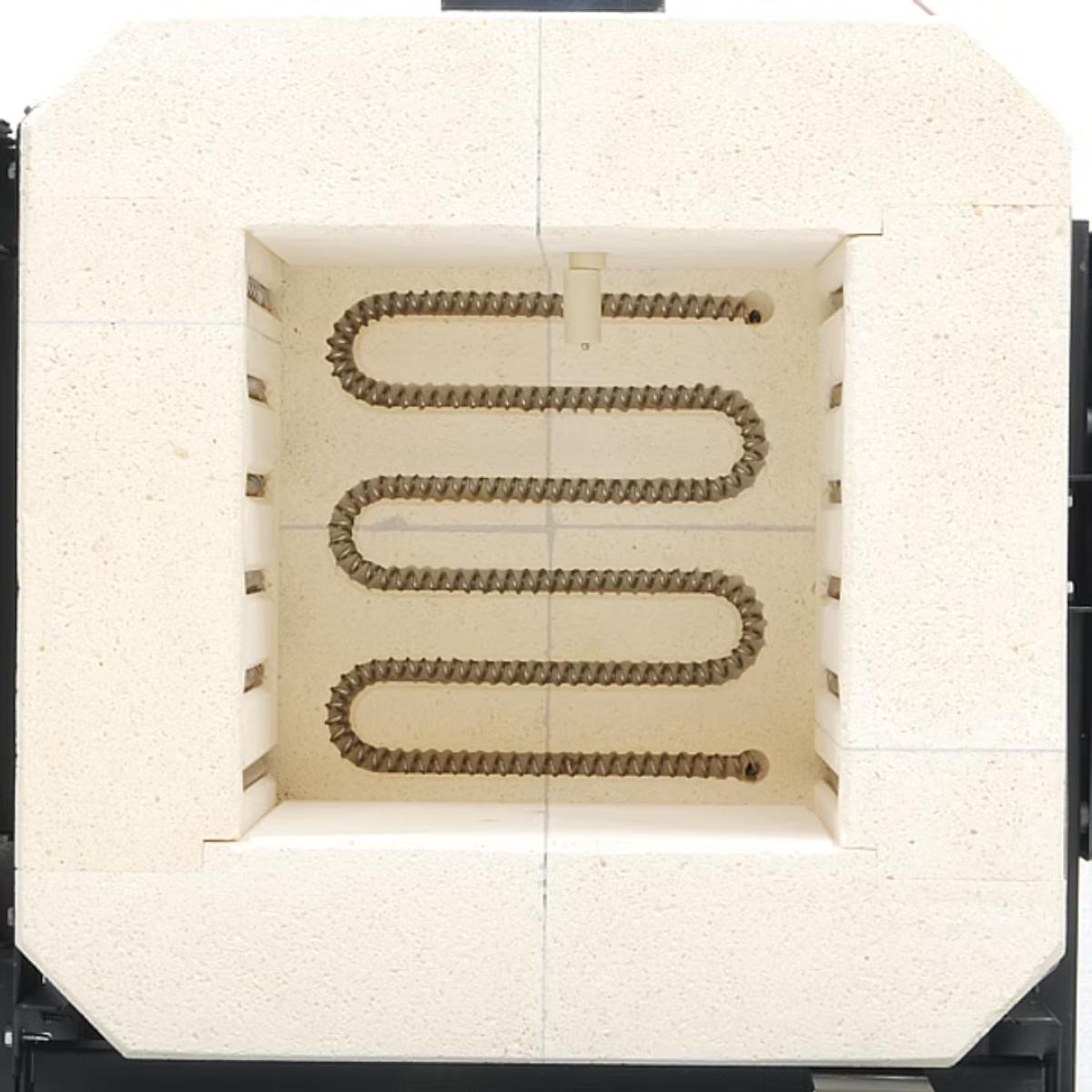

All Firebrick Construction – Stores heat to gently release it during soak, improving temperature stability.
-
2350 °F Max Temp (1287 °C) – Handles high-hardness steels and deep heat treatment reliably.
-

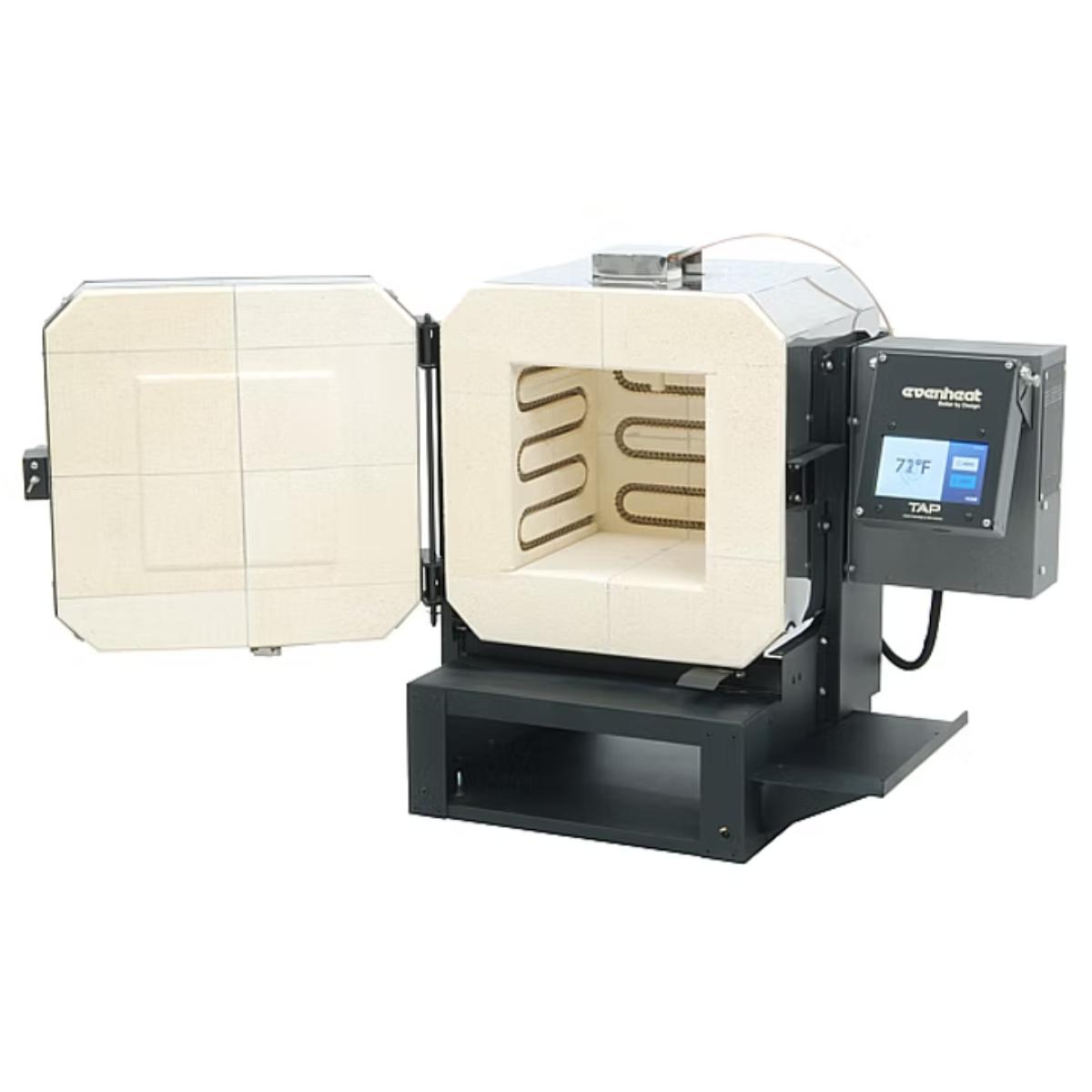

Swing-Out Door – Moves the hot door safely away so you can focus on loading and quenching.
-

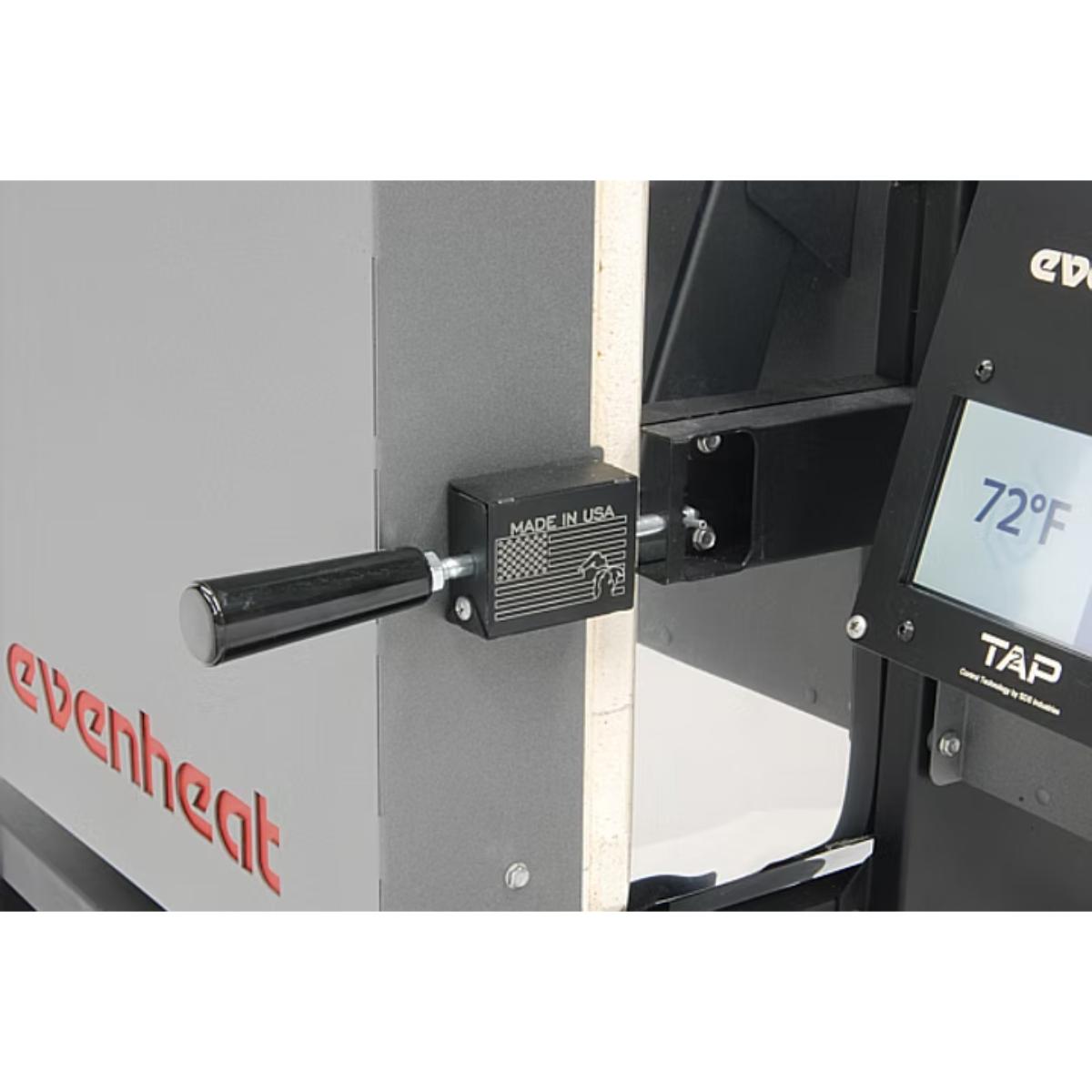

Cool-Touch Front Handle – Spring-loaded phenolic latch you can open one-handed—no burnt fingers.
-

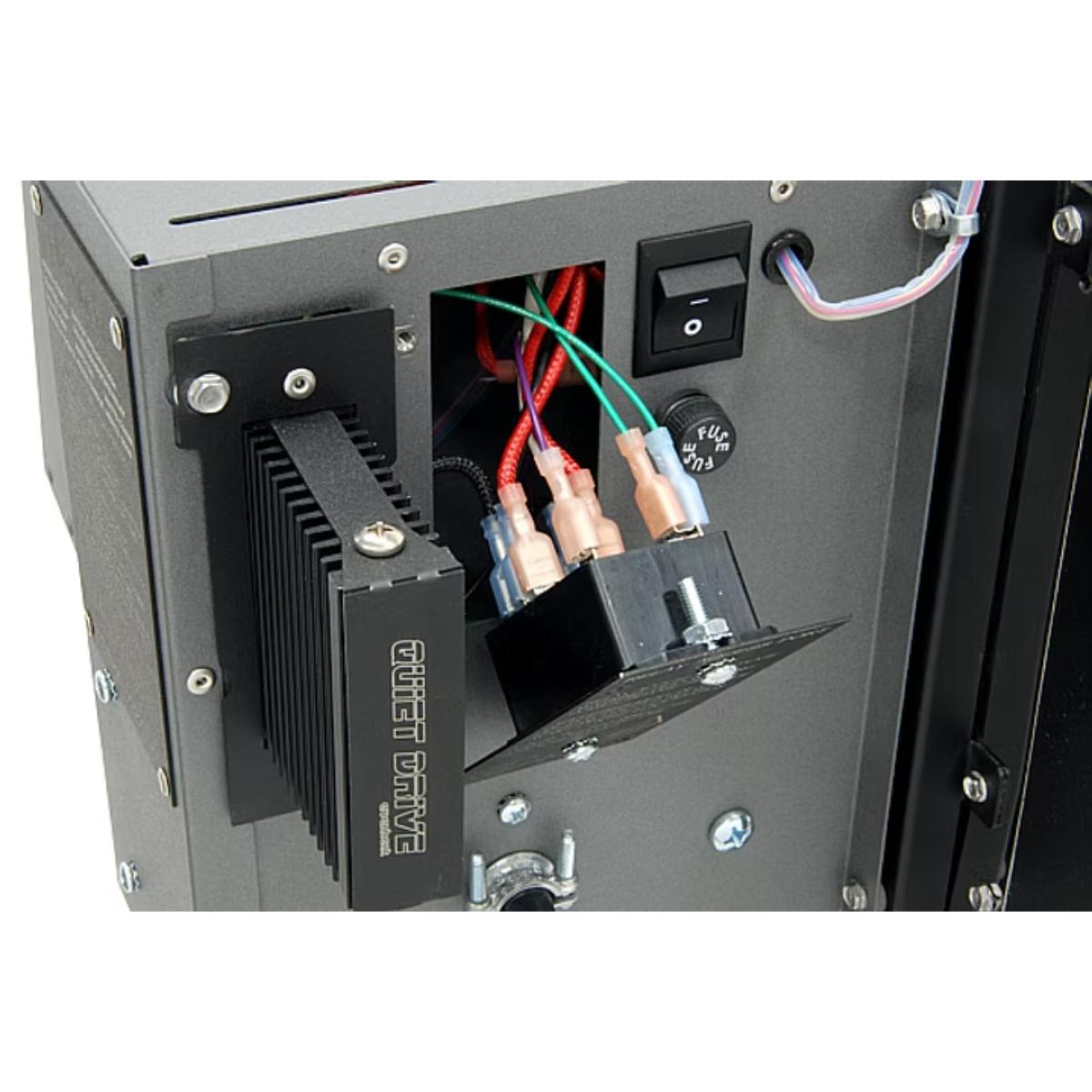

Relay Access Port – Access and replace the relay easily—no control panel disassembly.
-

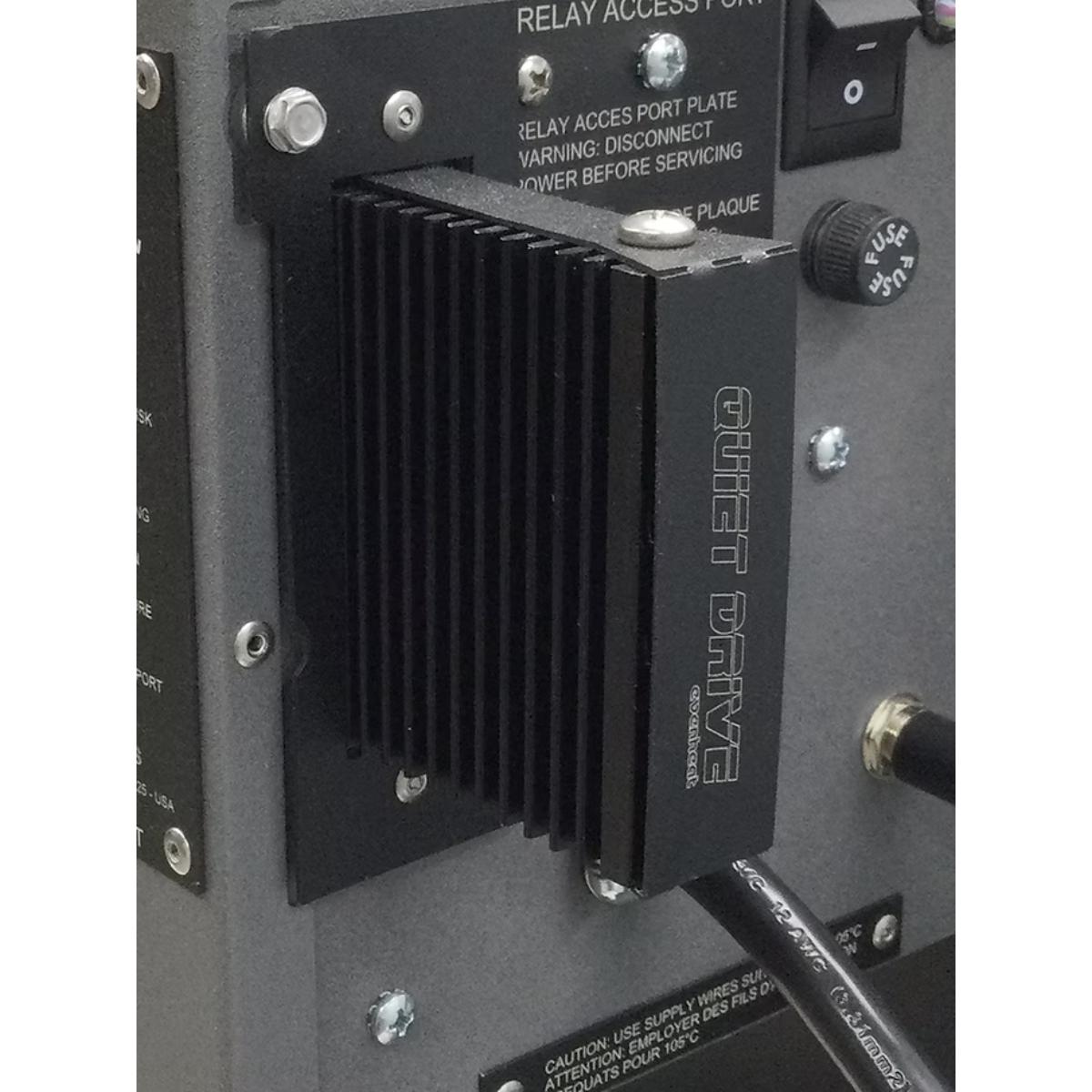

Quiet Drive Solid State Relay (Now Standard) – Built-in SSR technology offers tight control and longer element life.
-

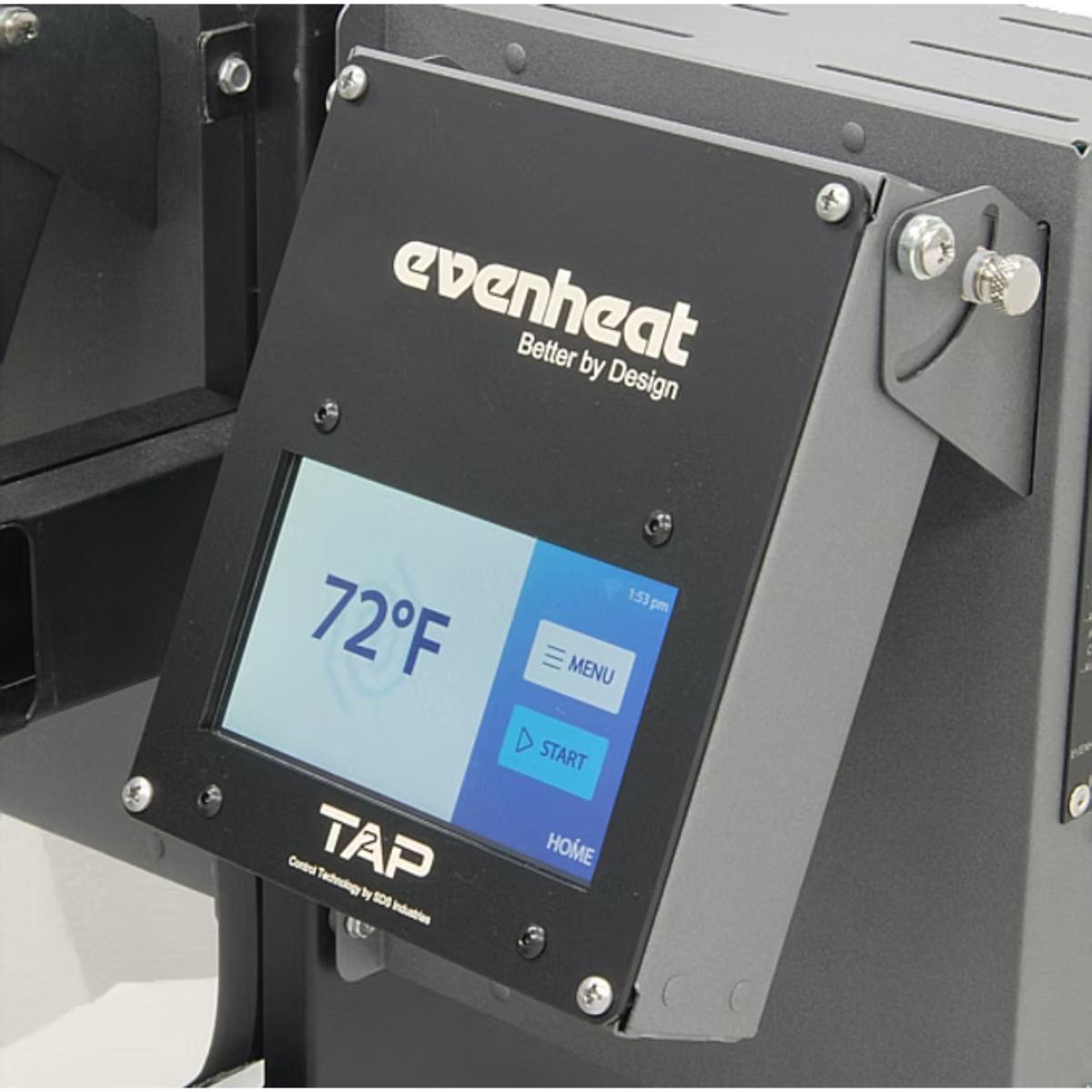

Swing-View Controls – TAP II and Rampmaster controllers pivot for easier viewing and programming.
-

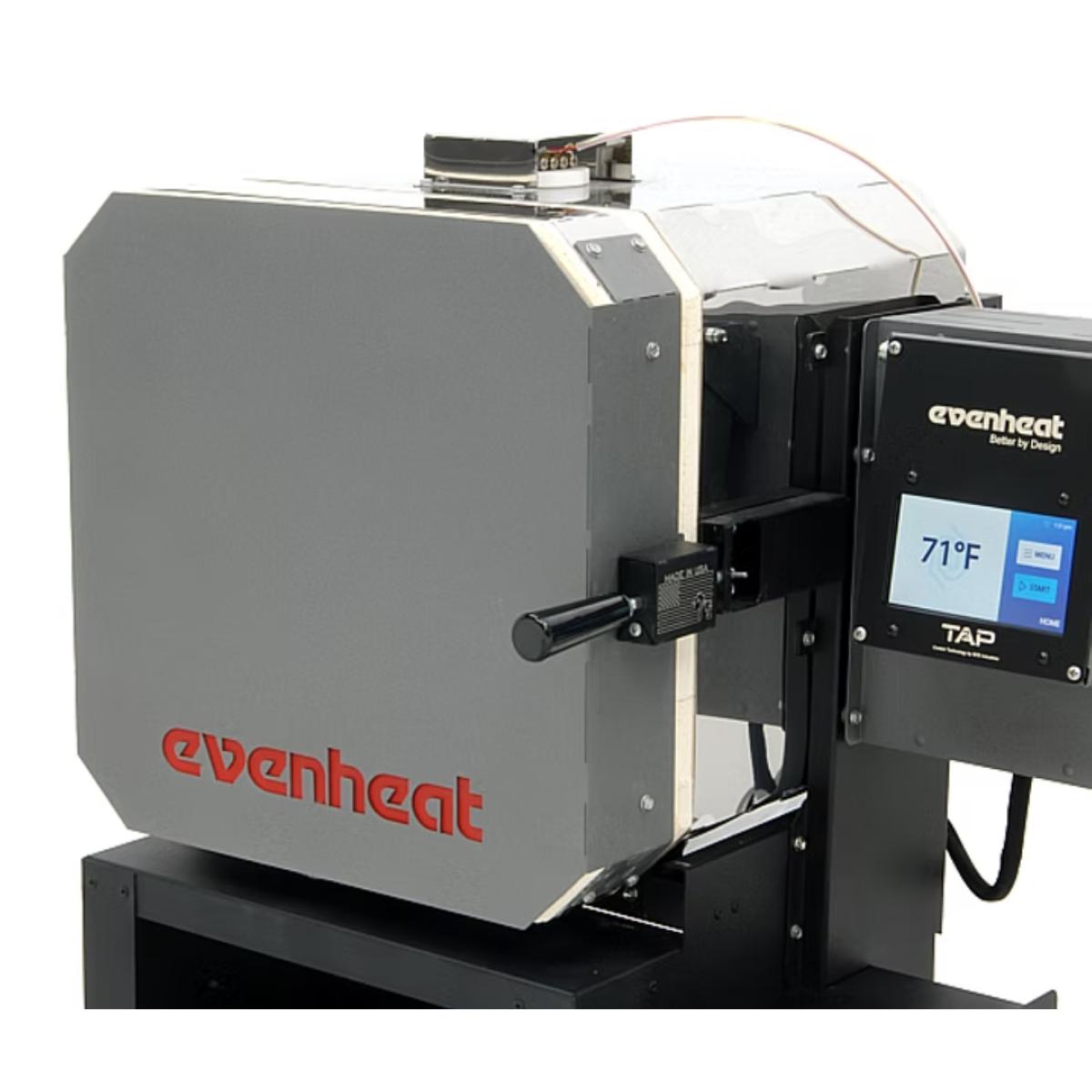

Door Shield – Protects the firebrick and keeps the door cooler during operation.
Additional Options for the Cube 7 Heat Treating Oven

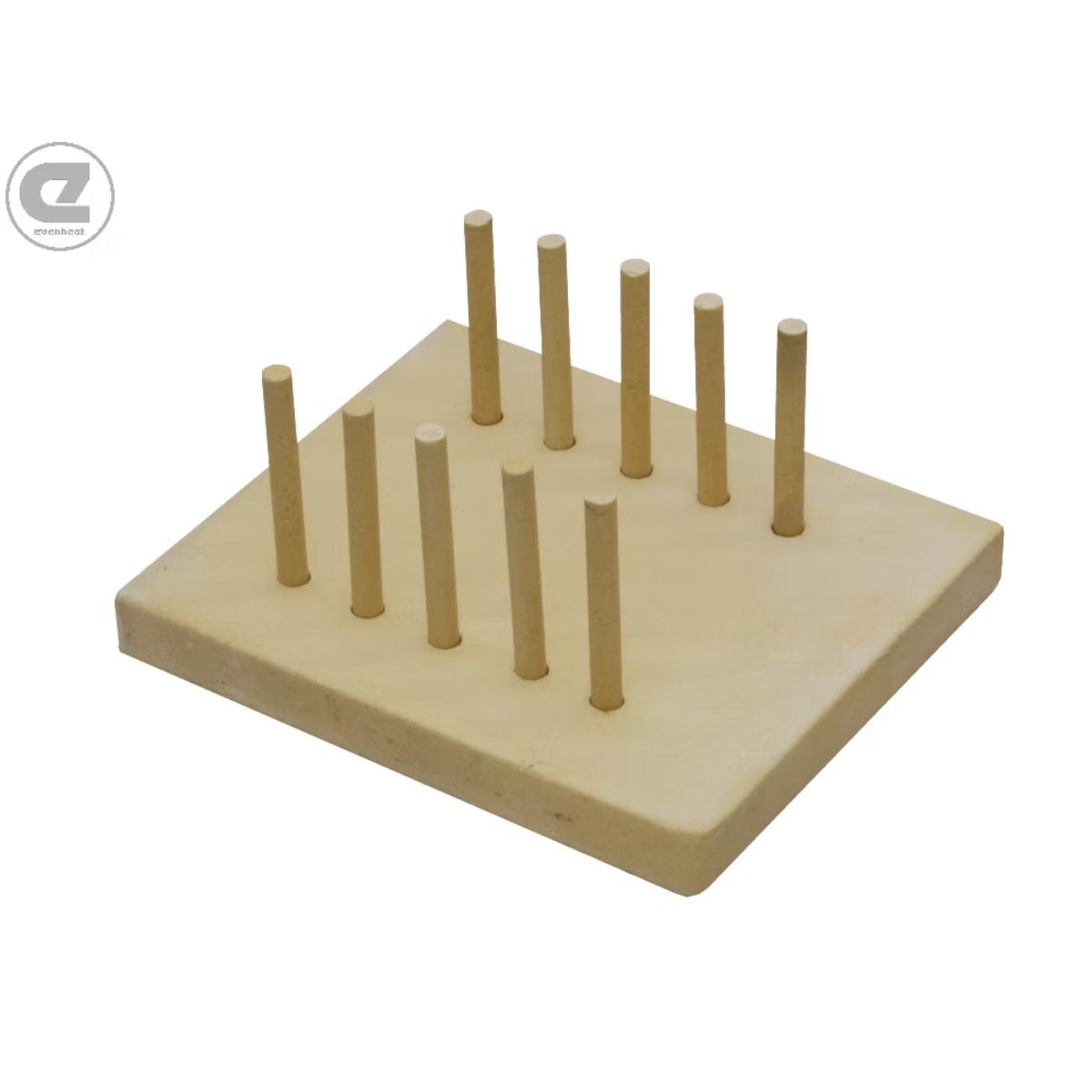

🗡 MK1 Blade Fixture
Securely holds up to four blades for safe, accurate heat treating.
🛢 Quench Tank
Heavy-duty welded construction with bolt-on feet, 24″ deep × 26″ tall. Features a 3-gallon capacity, 6″ square steel tubing (0.120″ wall), 5.75″ square opening, ⅛″ steel lid, and strong welded handles.
⚡ Power Interrupt Switch
Cuts power to all heating elements when the door opens and restores it when closed. Uses a true safety switch that forcibly opens welded or stuck contacts for reliable protection.
Who We Are
Modern Potters is women-owned and operated. We're all about hard work, continuous learning, and celebrating creativity in all forms. And like you, we LOVE bringing ideas to life.
We're Potters Ourselves! Starting with clay taught us that great work happens at high temperatures, so whether you're working with ceramics, glass art, metalworking, or industrial applications like DPF cleaning, we're here for you.
P.S. The cute pup's name is Kodah, he's the CPO (Chief-Pottery-Officer). He's the one who threw the bowl in the photo, if you can believe it. ✨
Evenheat Cube 7 Heat Treat Oven Specifications
| Feature |
Specification |
| Model |
Cube 7 Heat Treat Oven |
| Function |
Knife Tempering • Heat Treating • Harden Small Runs |
| Interior Dimensions (D × W × H) |
7" x 7" x 7" |
| Chamber Volume |
0.20 cu ft / 17.8cm x 17.8cm x 17.8cm – 5.7L |
| Maximum Temperature |
2350°F (1287°C) |
| Voltage |
120V standard, (240V available upon request) |
| Amperage |
12A |
| Wattage |
1440W |
| Receptacle Required |
NEMA 5-15 |
| Breaker Required |
15A |
| Weight |
~ 65 lb (freight) |
| Line Frequency |
50Hz or 60Hz |
| Outside Dimensions (D × W × H) |
23.5" × 16.5" × 17.25" |
| Controller Options |
TAP II, Icon, Icon+, Rampmaster 3 |
| Shipping |
Freight truck |
