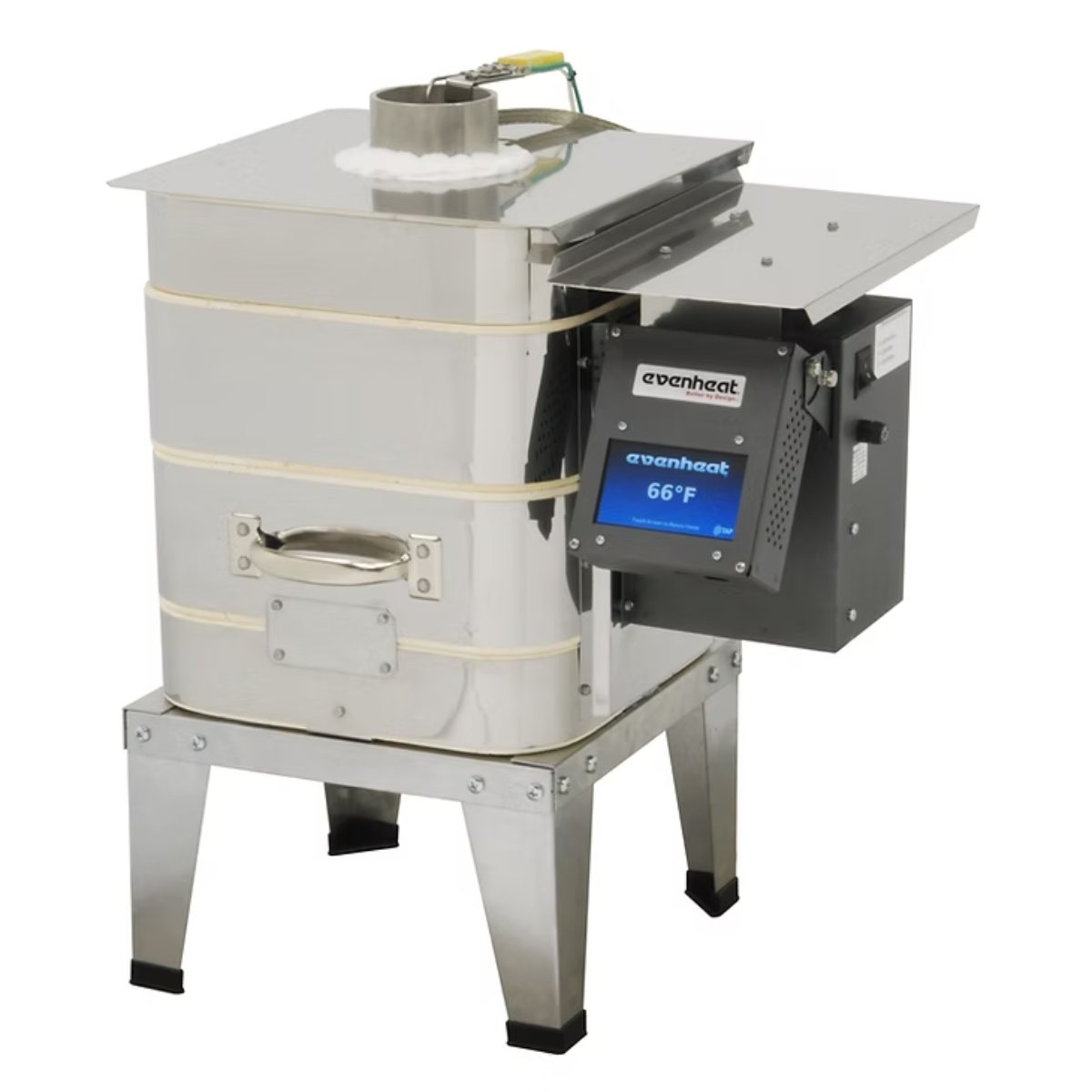

7x7x9 Salt Bath Heat Treating Oven for Folder Knife Makers and Short Blades
The Evenheat Salt Bath 709 is designed with the folder knife maker in mind, offering a compact 9″ depth for shorter blades and steels. Its 7″ × 7″ × 9″ chamber accommodates salt pots up to 5.5″ OD (~16″ depth), making it ideal for pocket knives, small tools, and precision parts.
Reaching 2000°F (1093°C), the SB 709 provides fast, even heat transfer directly into the steel. This minimizes scale and decarb compared to air or atmosphere firing, resulting in cleaner hardening, consistent tempering, and reduced post-treat cleanup.
Running on a standard 120V, 18A circuit, the 709 is highly accessible while still delivering professional results. Whether in a home shop or a dedicated knife studio, it ensures reliable, repeatable performance in a compact footprint.
Key Features of the Evenheat SB 709
-
Built for Knife Makers: Designed for short blades, pocket knives, and compact tooling.
-
7″ × 7″ × 9″ Chamber (0.26 Cu Ft): Accommodates salt pots up to 5.5″ OD and ~16″ depth.
-
Direct Salt‑Bath Heating: Smooth, uniform heat with reduced scale.
-
Fires to 2000°F (1093°C): Wide range for stainless, carbon, and tool steels.
-

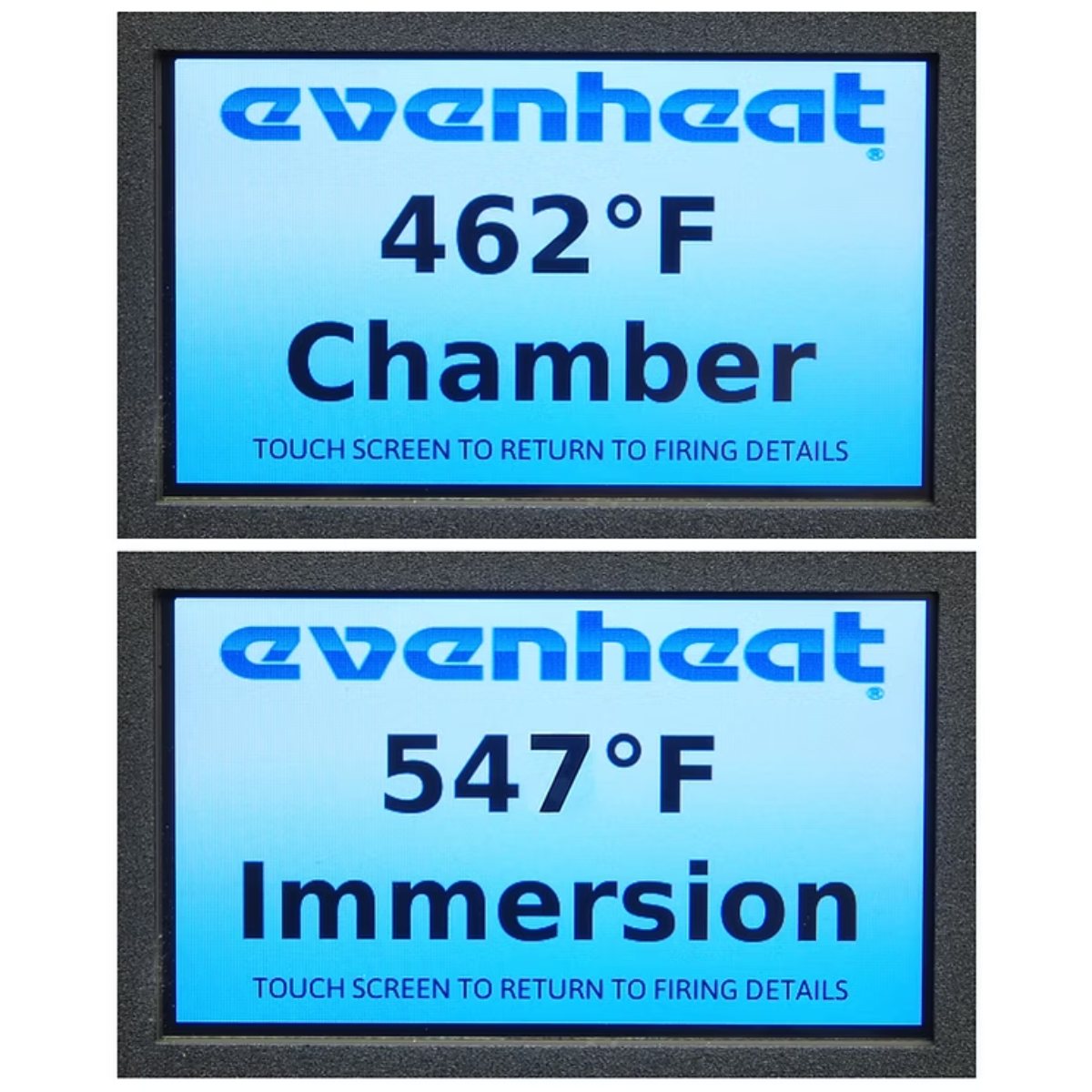

TAP Digital Control (Salt‑Bath Software): Precise, programmable cycles designed for salt bath applications.
-

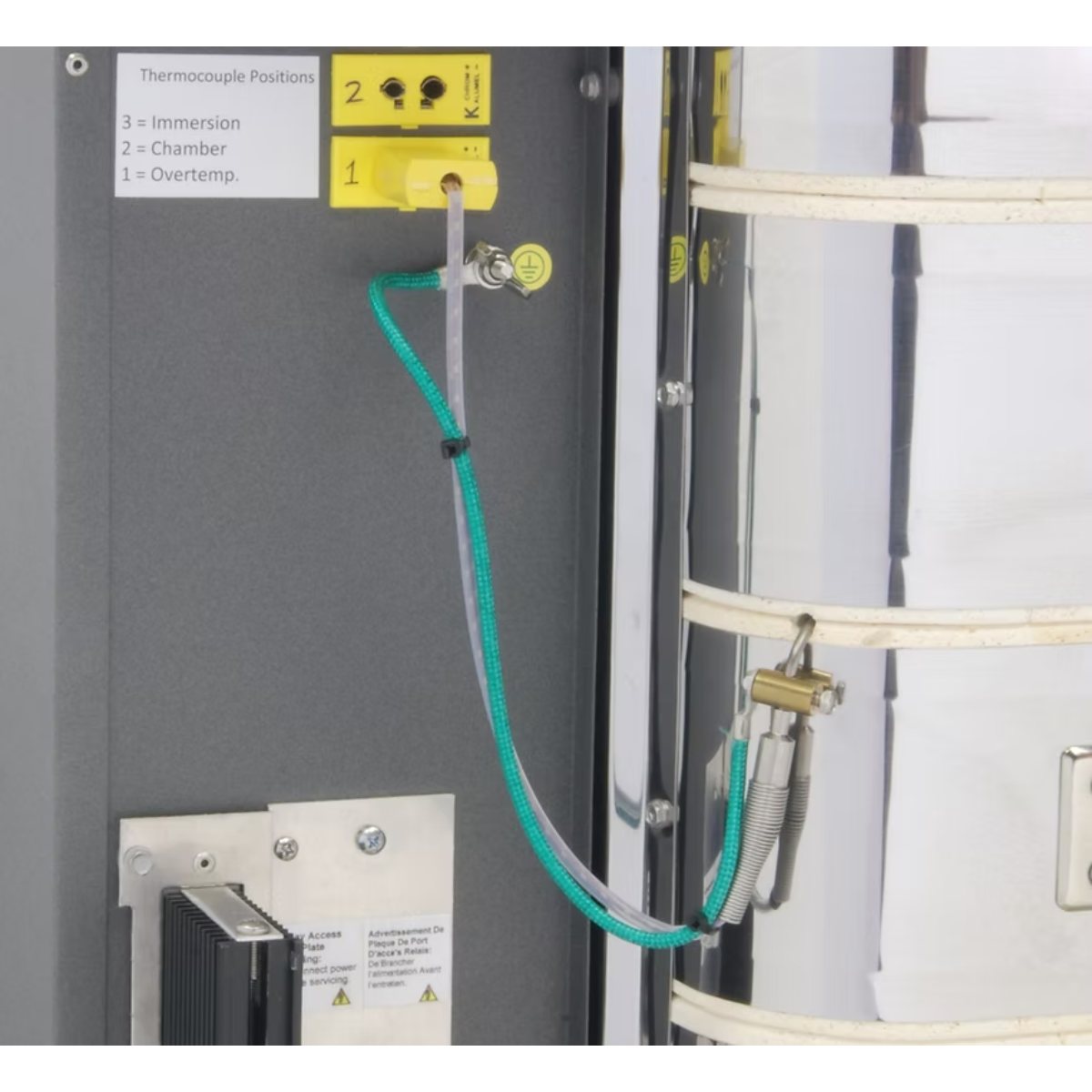

Immersion + Chamber + Over‑Temp Thermocouples: Built-in safeguards for accurate, safe operation.
-

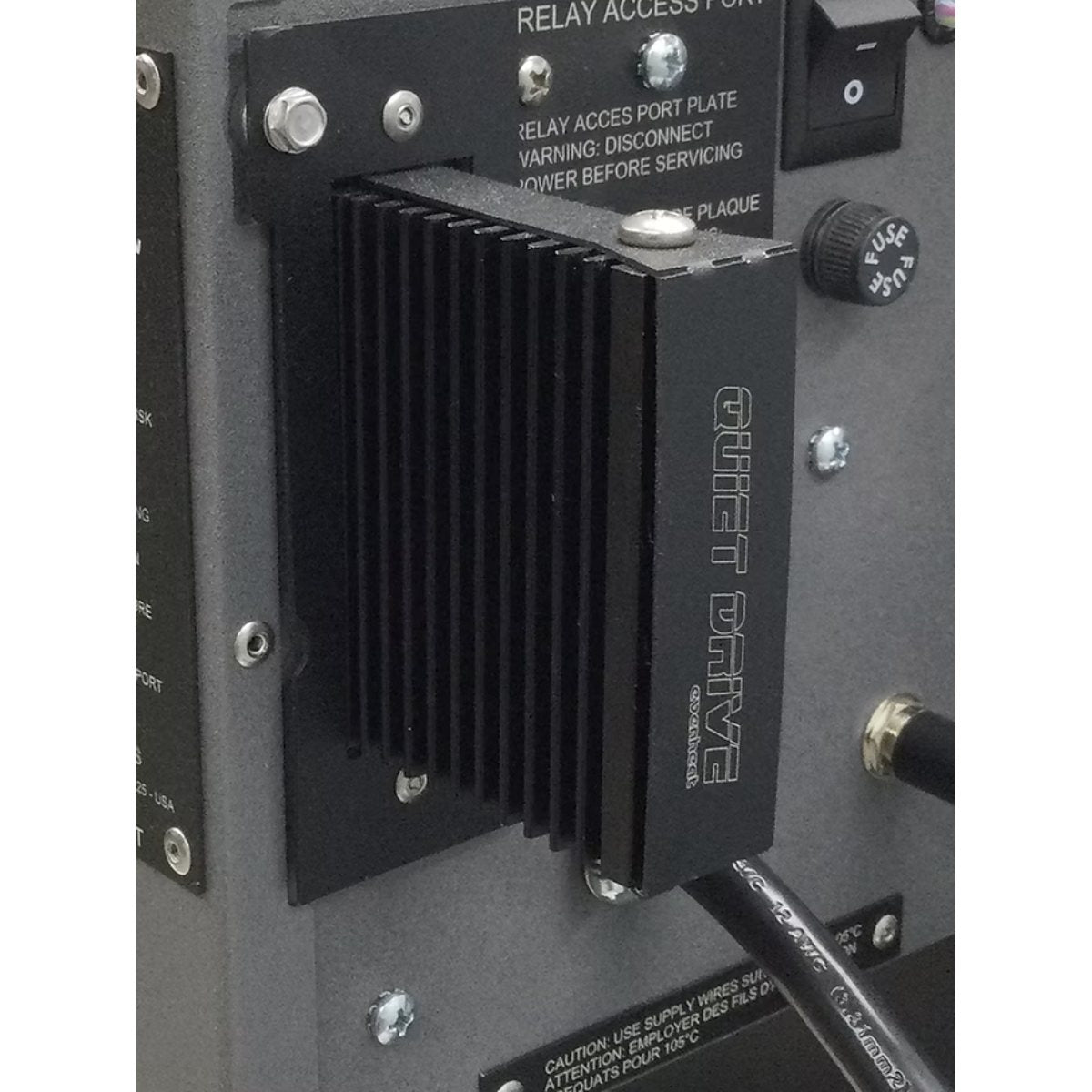

Quiet Drive SSR (Standard): Silent, reliable temperature control with extended element life.
-

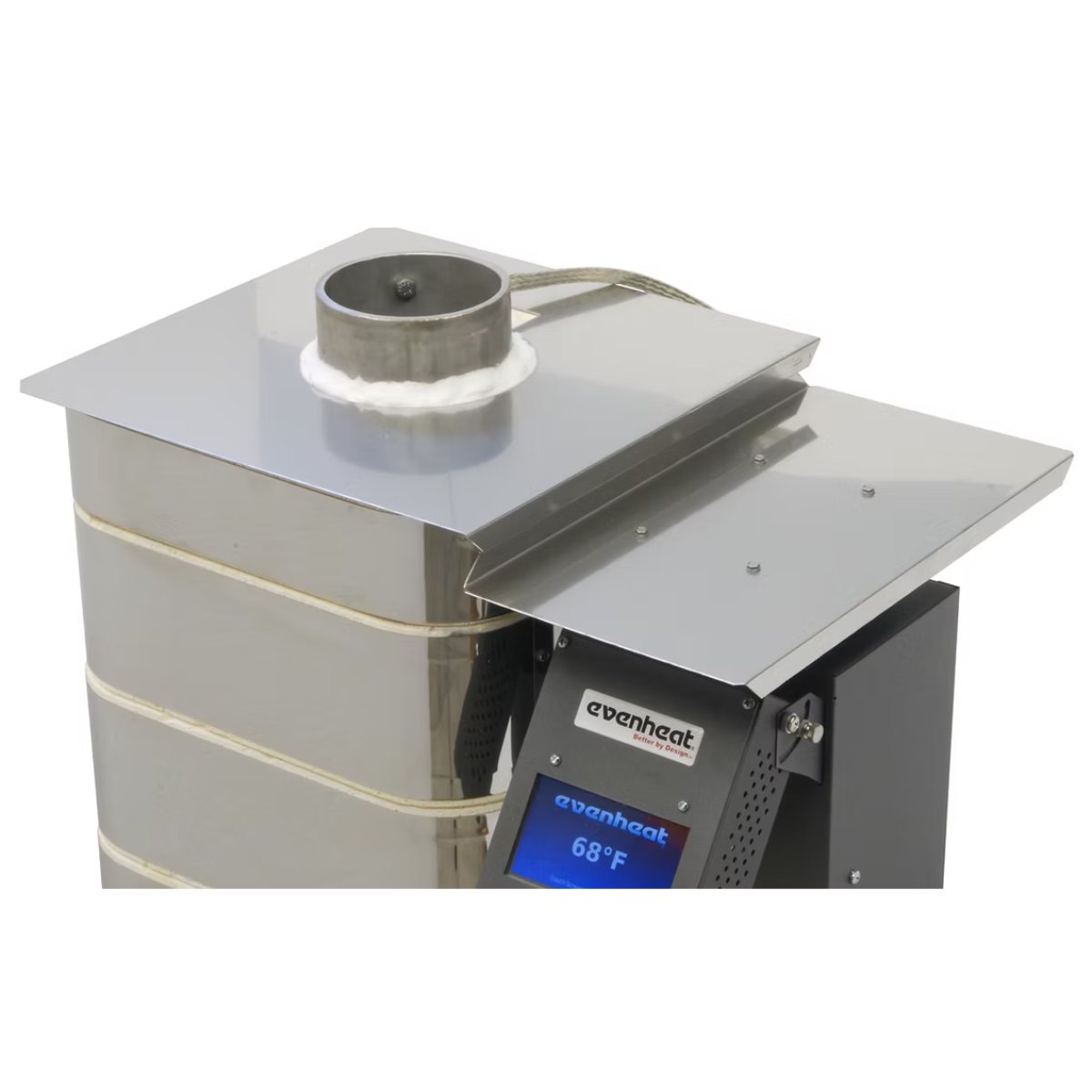

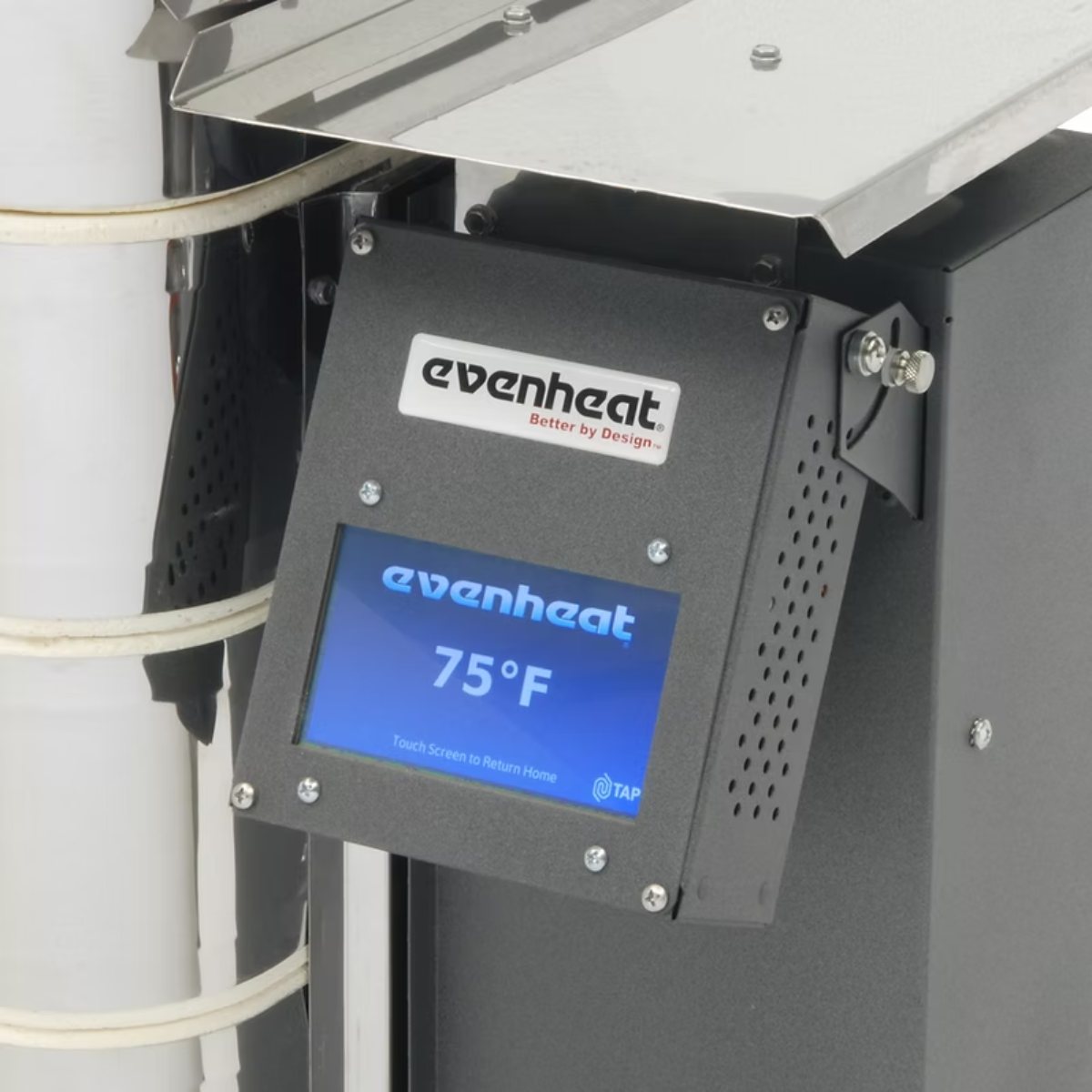

Swing View Enclosure + Drip Shields: Easy access controls and protection from drag-out.
-
Sectional Chamber Design: Simplifies maintenance with replaceable chamber sections.
-

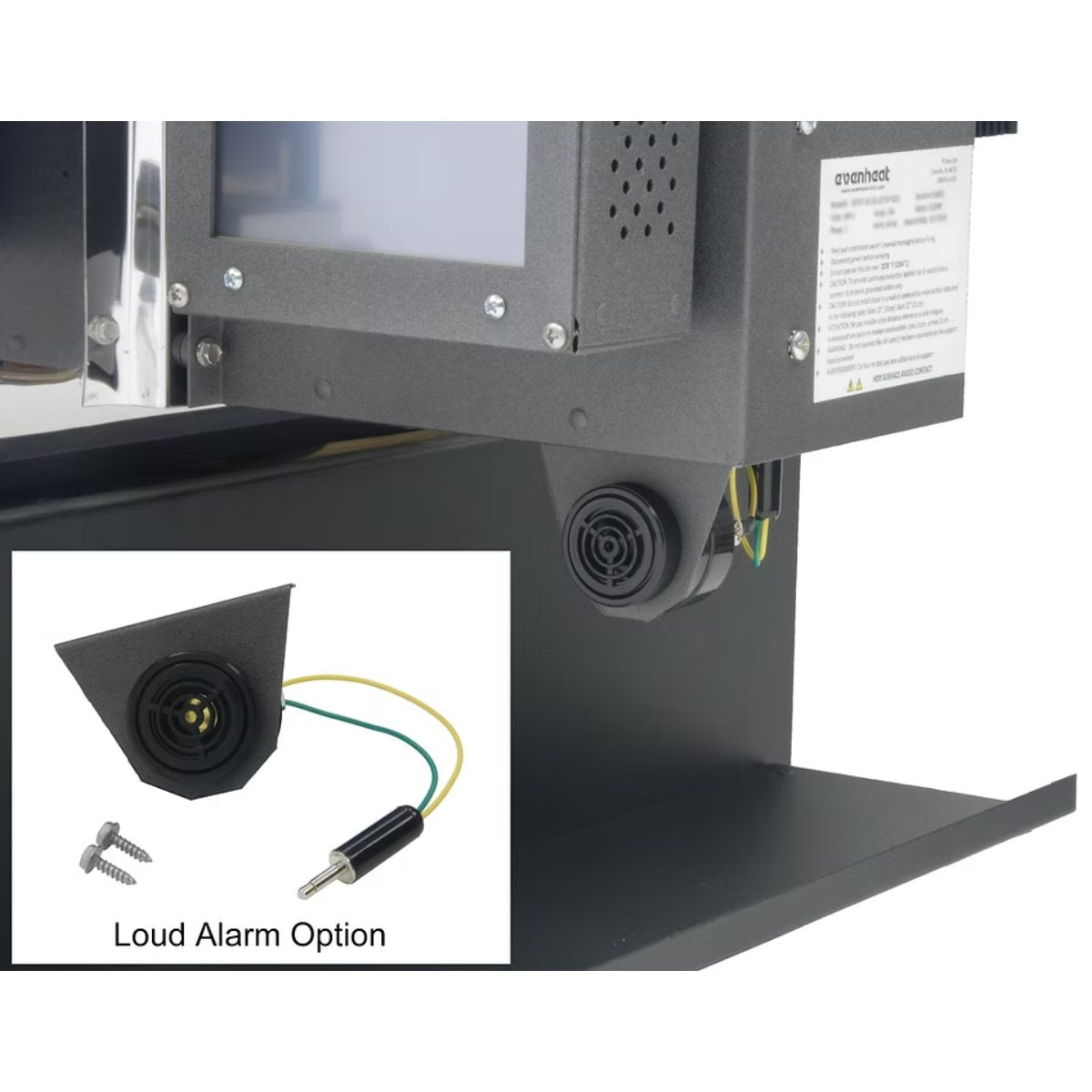

Loud Alarm Output Jack: Plug‑in option for an 80 dB shop‑ready alarm.
Additional Options for the 709 Heat Treat Salt Bath

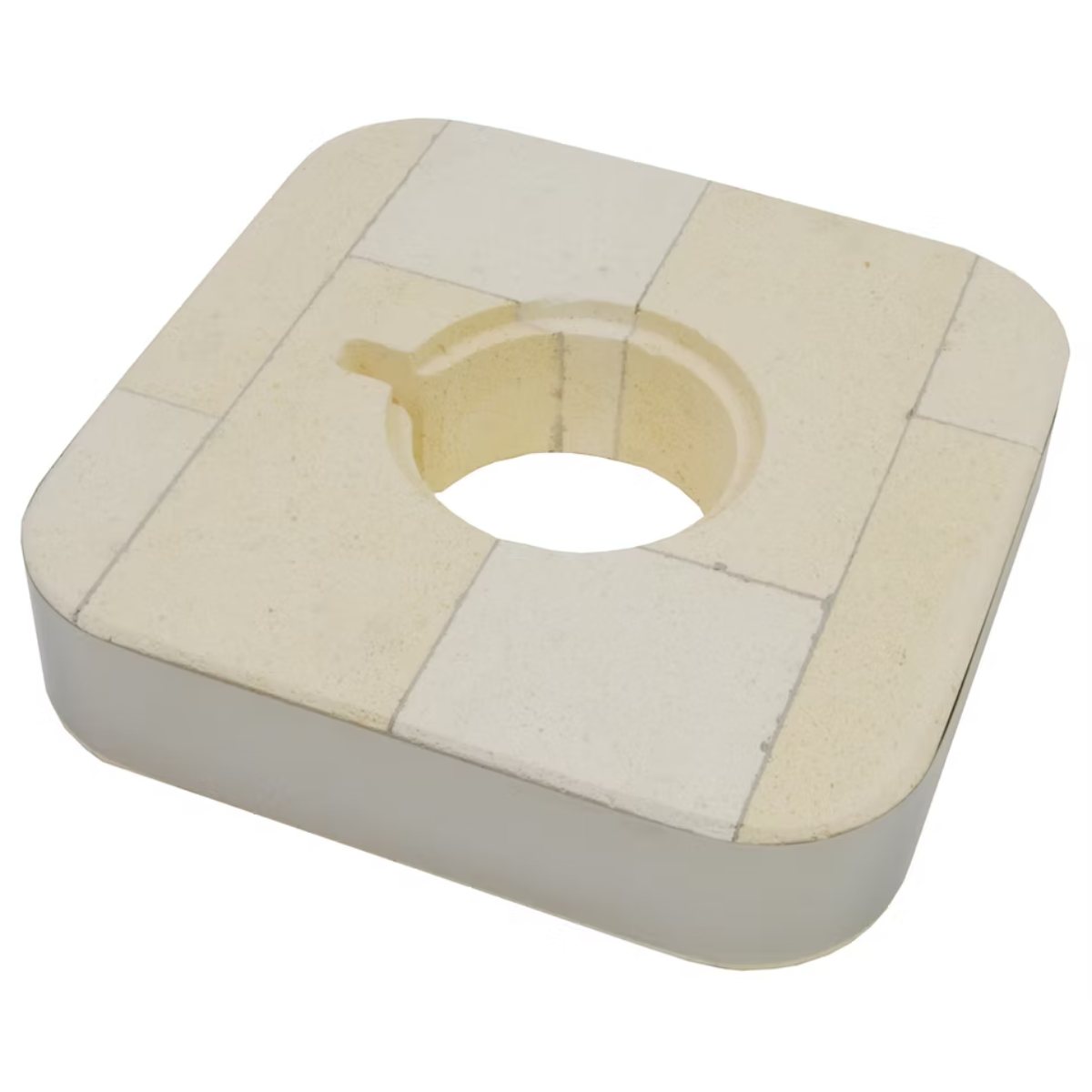

🕳 Salt Pot Access Hole
Available in 4″, 5″, and 6″ standard sizes, with custom options on request.
🔊 Loud Alarm Kit
Boosts the control alarm to 80 dB, loud enough to cut through shop noise so you never miss a quench.
Who We Are
Modern Potters is women-owned and operated. We're all about hard work, continuous learning, and celebrating creativity in all forms. And like you, we LOVE bringing ideas to life.
We're Potters Ourselves! Starting with clay taught us that great work happens at high temperatures, so whether you're working with ceramics, glass art, metalworking, or industrial applications like DPF cleaning, we're here for you.
P.S. The cute pup's name is Kodah, he's the CPO (Chief-Pottery-Officer). He's the one who threw the bowl in the photo, if you can believe it. ✨
Evenheat Salt Bath 709 Specifications
| Feature |
Specification |
| Model |
Evenheat Salt Bath 709 |
| Function |
Salt-bath heat treat kiln for stainless, carbon, and tool steels (short blades, folders, and small tooling) |
| Salt Pot Capacity |

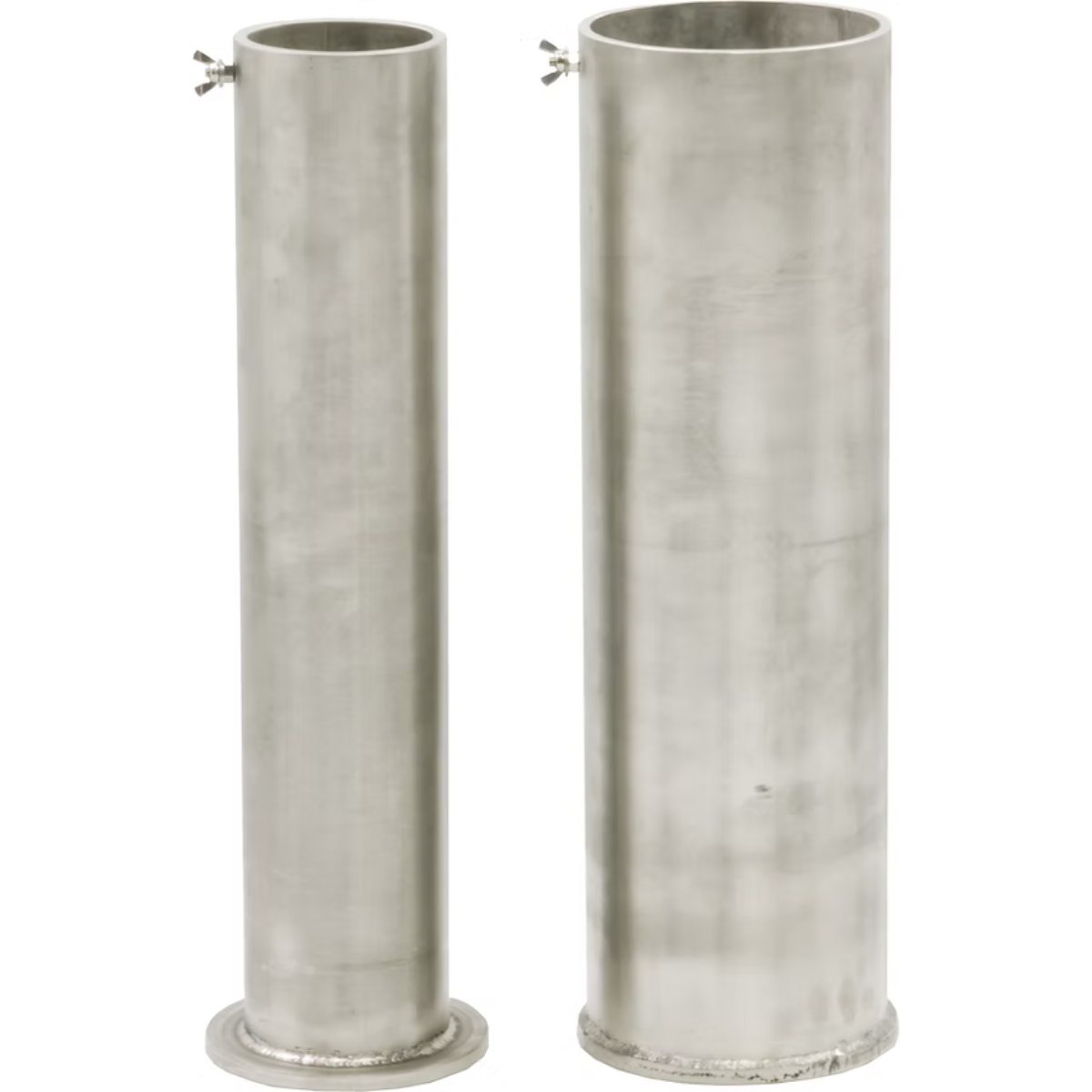

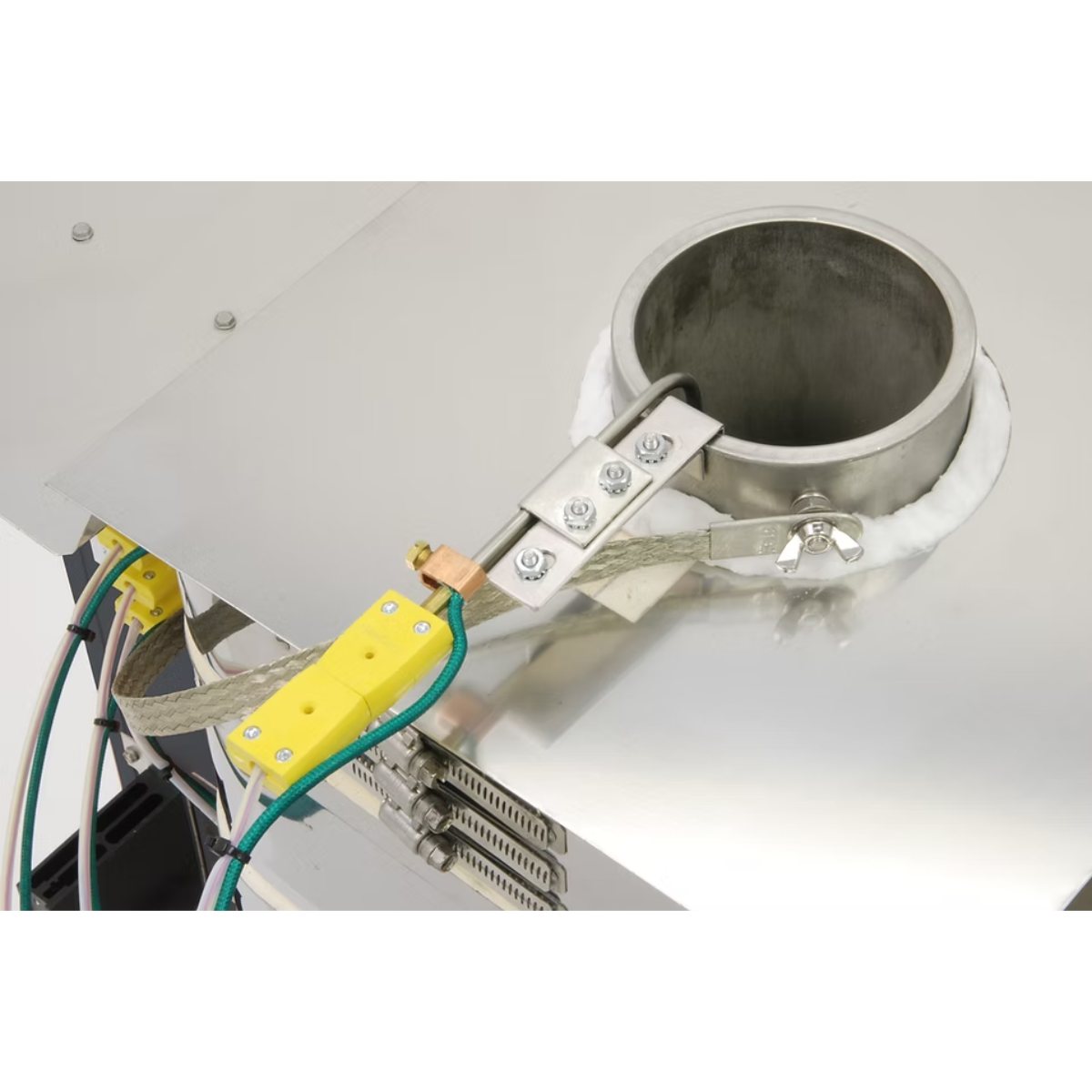

Up to 5.5″ OD, ~16″ depth; 316 SS Schedule 40 recommended, must be grounded |
| Interior Dimensions (W × L × D) |
7″ × 7″ × 9″ |
| Chamber Volume |
0.26 cu ft / 17.8 × 17.8 × 22.9 cm / 7.4 L |
| Maximum Temperature |
2000°F (1093°C) |
| Voltage |
120V (standard) |
| Amperage |
18A |
| Wattage |
2160W |
| Receptacle Required |
NEMA 5-20 |
| Breaker Required |
20A |
| Weight |
~ 60 lbs (freight) |
| Line Frequency |
50Hz or 60Hz |
| Outside Dimensions (W × L × H) |
18″ × 13″ × 23″ |
| Controller Included |
TAP Control w/ Dedicated Salt Bath Software |
| Shipping |
Freight truck |
